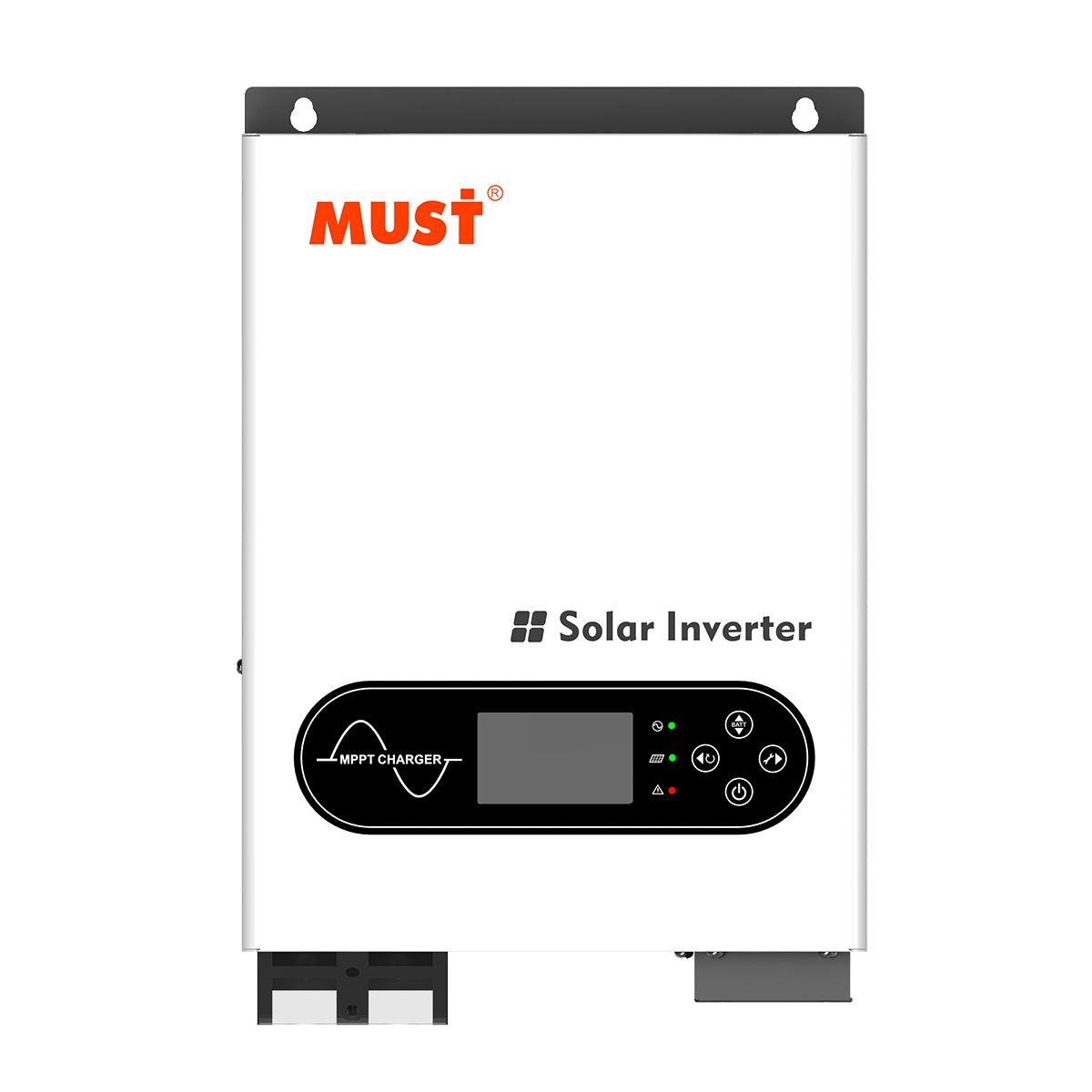

Must 6Kw EXP Pro Solar Inverter is engineered to deliver reliable solar power with pure sine wave output and integrated MPPT charging (where applicable). Designed for installation flexibility and robust protection features, this inverter supports varied battery voltages and wide PV input ranges.
Ideal applications include residential off-grid systems, backup power, remote cabins, and small commercial installations.
Technical Specifications
| Rated Power | 5200 – 6000 W (model dependent) |
| Surge Power | 10000 W |
| Battery Voltage | 48 VDC |
| AC Output Voltage | 230 VAC ±5% |
| Output Waveform | Pure Sine Wave |
| Inverter Efficiency | > 93% |
| Transfer Time | < 10 ms (typical), 20 ms (max) |
| PV Input Voltage Range | 60 – 500 VDC |
| Max PV Voltage | 500 VDC |
| Max Solar Charge Current | 80 – 120 A |
| Charging Algorithm | MPPT |
| Dimensions (W×H×D) | 360 × 480 × 150 mm |
| Net Weight | 18 – 25 kg |
| Operating Temp | 0 °C – 50 °C |
| Warranty | 2 years |
